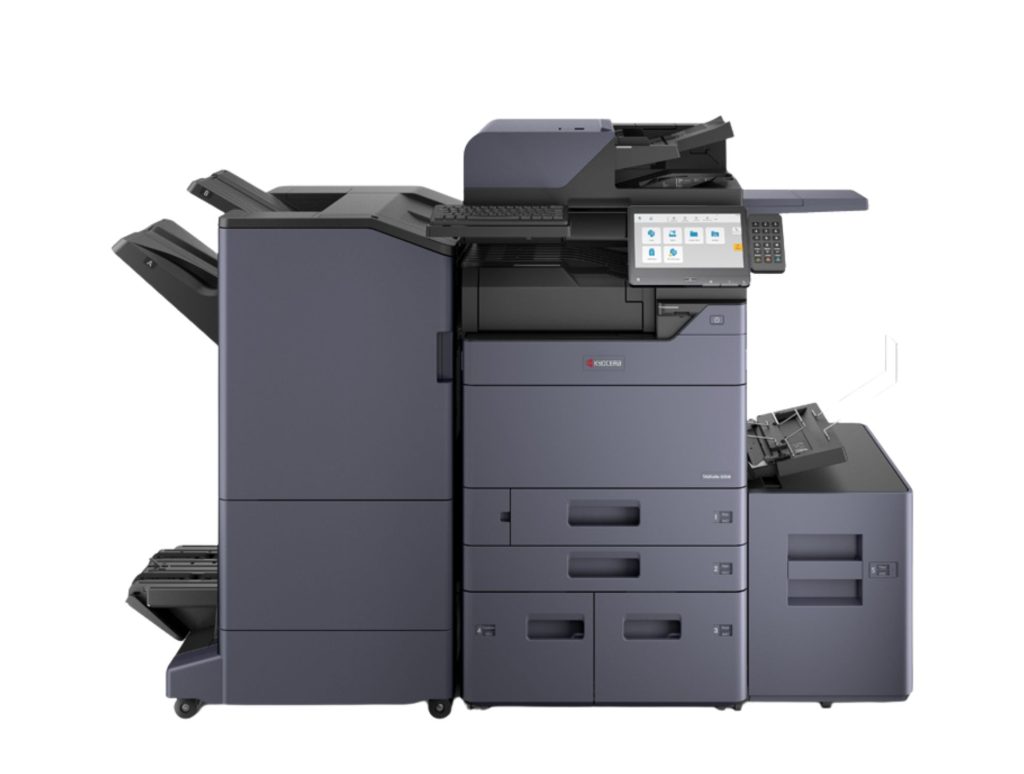

The TASKalfa 6054ci boost productivity further high speed scanning, excellent media handling support and enhanced finishing capabilities with the inserter and Z-folding options and packed with enhanced security features to protect your valuable data.
Model
AK-7110
Type
Attachment kit for DF-7110, DF-7120 and DF-7130
Capacity (sheets)
100 sheets, 52–300 g/m2, A6R–SRA3
Paper size
Bridge unit AK-7110 is required when using a finisher
Model
AK-7120
Type
Attachment kit for Z-folding unit
Model
Banner Guide (10)
Type
Banner paper feeding guideCapacity (sheets)
10 sheets
Dimensions (W x D x H)
(W x D x H): 250 x 374 x 152 mm
Paper size
320 x 1 220 mm
Model
BF-730
Type
Booklet and tri-folding unit for DF-790(B)/DF-7110
Dimensions (W x D x H)
(W x D x H) 650 × 410 × 320 mm
Paper size
Half folding: 60–256 g/m², A3, B4, A4R Booklet: max. 16 sheets (64 pages, 60–90 g/m³) Non-staple folding: max. 5 sheets (60–90 g/m²) Tri-folding: 60–120 g/m², A4R Multi tri-folding: 5 sheets (60–90g/m²), 3 sheets (91–120g/m²)
Model
BF-9100
Type
BF-9100 Booklet and tri-folding unit for DF-7130
Dimensions (W x D x H)
(W x D x H) 650 × 410 × 320 mm
Paper size
Half-folding: 52–256 g/m2, A3, B4, A4R Booklet: Max 20 sheets (80 pages, 60-90g/m2) or Max 13 sheets(52 pages 91-105g/m2) Non-staple: Max 5 sheets(60-90g/m2) or Max 3 sheets(91-105g/m2) Tri folding: Max 5 sheets(60-90g/m2) or Max 3 sheets(91-105g/m2)
Model
DF-7100
Type
Internal Document finisher
Capacity (sheets)
500 sheets
Dimensions (W x D x H)
(W x D x H): 672 × 533 × 277 mm
Paper size
52–300 g/m²; A6R – SRA3; Stapling up to 50 sheets at 3 positions A4 – A3
Model
DF-7120
Type
Document Finisher + AK-7110
Capacity (sheets)
1,000 sheets
Dimensions (W x D x H)
(W x D x H) 548 x 618.5 x 1050 mm
Paper size
Main tray: 1,000 sheets A4, 52 – 300 g/m², A6R – SRA3, 3 positions stapling up to 50 sheets A4 or 30 sheets SRA3 AK – 7100: 100 sheets; 52 – 300 g/m², A6R – SRA3 (Bridge unit AK-7100 is required for the use of DF-7120)
Model
DP-7140
Type
Document Finisher (AK-7110 required)
Capacity (sheets)
4,000 sheets
Paper size
Main tray: Max. 4,000 sheets A4 (3,000 sheets with attachment BF-730); max. 52 – 300 g/m²; max. A6R – SRA3 Sub tray: 200 sheets A4; 52 – 300 g/m²; A6R – SRA3 AK – 7100: 100 sheets; 52 – 300 g/m²; A6R – SRA3 Stapling up to 65 sheets A4 or 30 sheets A3 at 3 positions, B5 – SRA3 (Bridge unit AK-7110 is required for the use of DF-7140)
Model
DP-7150
Type
Document Finisher (AK-7110 required)
Capacity (sheets)
4,000 sheets
Paper size
Main tray: Max. 4,000 sheets A4; max. 52 – 300 g/m²; max. A6R – SRA3 Sub tray: 200 sheets A4; 52 – 300 g/m²; A6R – SRA3 AK – 7110: 100 sheets; 52 – 300 g/m²; A6R – SRA3 Stapling up to 100 sheets A4 or 30 sheets A3 at 3 positions, B5 – SRA3 (Bridge unit AK-7110 is required for the use of DF-7150)
TK-8550C
Toner cyan for 24,000 pages. Average continuous toner yield in accordance with 5 % A4 coverage.
TK-8550K
Toner black for 40,000 pages. Average continuous toner yield in accordance with 5 % A4 coverage.
TK-8550M
Toner magenta for 24,000 pages. Average continuous toner yield in accordance with 5 % A4 coverage.
TK-8550Y
Toner yellow for 24,000 pages. Average continuous toner yield in accordance with 5 % A4 coverage.
WT-8500
Waste Toner Bottle: 40,000 sheets A4 (in accordance with 5% coverage, b/w : colour = 7:3)
Card Authentication Kit (B)
Support for various authentication keys available
DT-730(B)
Document tray
Fax System 12
Super G3 Fax, network fax
HD-15
320 GB HDD hard disc for easy document management
HD-16
1TB HDD hard disc for easy document management
IB-37
Wireless Network Interface (USB: 5GHz/2.4GHz)
IB-38
Wireless Network Interface (USB: 2.4GHz)
IB-50
Gigabit-Ethernet board 10BaseT/100BaseTX/1000BaseT
IB-51
Wireless LAN Interface (802.11b/g/n)
Internet Fax Kit
Type A
KPC-12
Paper clamp to protect paper for standard cassettes, PF-7150/PF-7120
KPC-13
Paper clamp to protect for PF-7140
KYOmulticode SD 3
Contains all the functionalities of PCL Barcode Flash plus Unicode font “Andale Mono World Type“ which allows the user to print Asian fonts (Japanese, Korean, current and traditional Chinese)
Keyboard Holder 10
For optional USB keyboard
NK-7120
Numeric keypad
PCL Barcode SD
Adds additional one- and two-dimensional barcodes to the KYOCERA device (as well as the resident and machine-readable fonts OCR-A, OCR-B)
Platen Cover
Type E
Printing System 17
Fiery® Controller
Scan extension Kit (A) AC
Scan to searchable PDF (embedded OCR)
UG-33
ThinPrint support
UG-34
Emulation (IBM Proprinter/EPSON LQ-850/Diablo 630)
USB IC Card Reader + Card Authentication Kit (B)
Support for various authentication keys available
General type
Colour multifunctional for A3 format
Engine speed
Up to 60 pages A4 per minute. Up to 30 pages A3 per minute. Duplex print speed: 60 page per minute, A4. Duplex copy speed: 60 page per minute, A4.
Warm-up time
Approx. 17 seconds or less
Power consumption
Printing: 990 W, Copying: 990 W, Ready mode: 45 W, Sleep-mode: 0.5 W
Input capacity
Multi-purpose tray: 150 sheets 52 – 300g/m2, (Banner 136–163 g/m2 ) A6R – SRA3 (320 x 450 mm), Custom (98 x 148 to 320 x 1,220 mm), Banner max. 304.8 x 1,220 mm Standard universal paper cassette: 2 x 500 sheet 52 – 300g/m2 Upper cassette A6R up to A4R, lower cassette A6R up to SRA3
Max. input capacity with options
7,150 sheets A4
Duplex unit
Standard 64 to 256 g/m2 SRA3 to A6R
Max. output capacity
Standard 500 sheets face-down, Max. 4300 sheets
Document processor
Optional
Processor
ARM A53 (Quad Core) 1.6GHz
Fonts
93 outline fonts (PCL), 136 fonts (KPDL 3), 8 fonts( Windows Vista), 1 Bitmap font 45 types of one-dimensional barcodes, 1 type of two-dimensional barcode (PDF417)
Features
Encrypted PDF Direct Print, IPP printing, e-mail printing, WSD print, secure printing via SSL, IPsec, SNMPv3, quick copy, proof and hold, private print, job storage and job management functionality, Super Resolution
Applicable OS
All current Windows operating systems, MAC OS X Version 10.9 or higher Unix, Linux as well as other operating systems on request
Max. original size
A3, Ledger
Continuous copy
1-9999
Zoom range
25 – 400 % in 1% steps
Preset magnification ratios
5 Reductions/5 Enlargements
Image adjustments
Text + Photo, Photo, Text, Diagram/Map
Digital copy features
Scan-once-copy-many, electronic sort, 2in1, 4in1, image repeat, page numbering, cover mode, booklet copy, interrupt copy, form overlay, margin shift, auto cassette change, skip blank page, ID copy
Scan functionalities
Scan to e-mail, Scan to FTP, Scan to SMB, Scan to USB Host, Scan to box, Network TWAIN, WIA/WSD scan
Scan speed
274 ipm (300 dpi, A4, duplex, b/w, with DP-7160/7170), 274 ipm (300 dpi, A4, duplex. colour, with DP-7160/7170)
Scan resolution
600dpi x 600dpi , 400dpi x 400dpi , 200dpi x 400dpi, 300dpi x 300dpi , 200dpi x 200dpi , 200dpi x 100dpi 256 greyscales per colour
Max. scan size
A3, Ledger
File type
TIFF, PDF, PDF/A, JPEG, Open XPS, Encrypted PDF, High compression PDF, PDF/A-1a/b, PDF/A-2a/b/u, Searchable PDF (Option), MS Office file (Option)
Original recognition
Text, photo, text + photo, Light Text / Fine Line, optimised for OCR
Compatibility
ITU-T Super G3
Modem speed
Max. 33.6 kbps
Scanning speed
2.0 seconds or less
Transmission speed
Max. 3 seconds (JBIG)
Scanning density
Normal: 200 x 100 dpi, fine: 200 x 200 dpi, superfine: 200 x 400 dpi, Ultrafine: 400 x 400 dpi, halftone: 256 greyscales
Max. original size
A3, Ledger, Banner: 1600mm
Fax features
Network faxing, rotate transmission, rotate reception, encrypted transmission and reception, duplex fax reception, memory reception, mailbox, remote diagnostics, polling transmission and reception, broadcast, Optional Internet-fax, dual fax with second fax system 12
