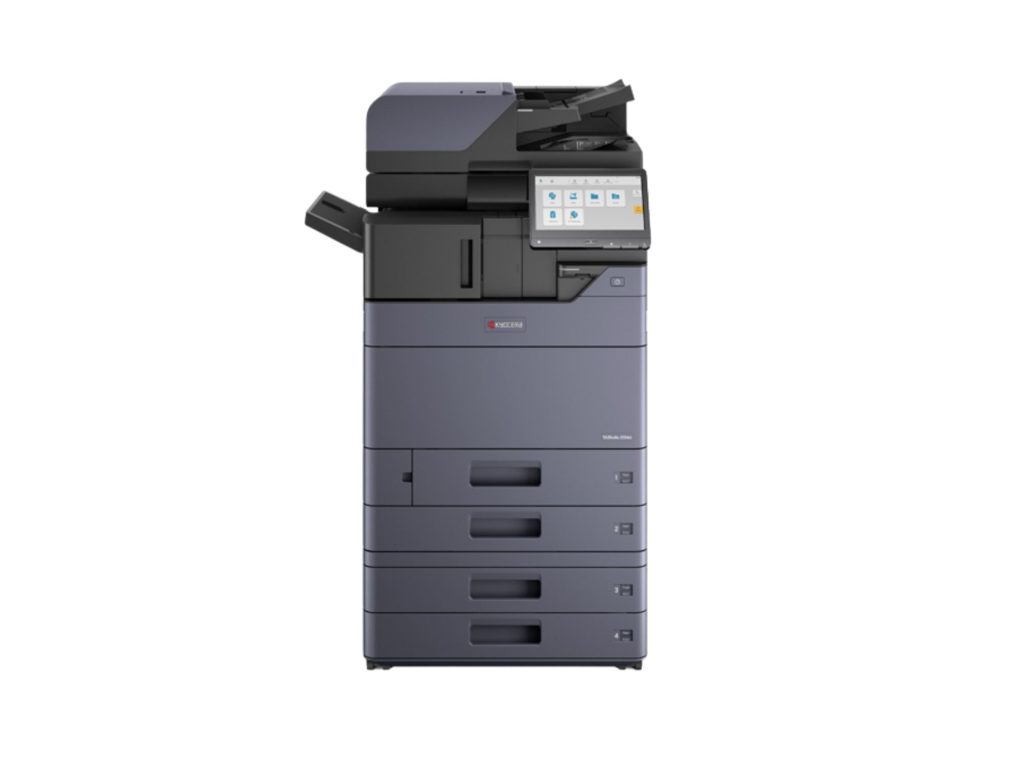

As one of the most reliable products in the field, the TASKalfa 2554ci is designed to operate in dynamic work environments and ensure consistent productivity. This device offers user-friendly operations, advanced security and highly productive intelligent features. Sharp black text and high impact colour output with an exceptional range of scanning, input and professional finishing options will help your business focus on what matters. The 10.1 inch touchscreen with its new simple, intuitive and efficient user interface will make operating this device smooth and easy.
Model
AK-7110
Type
Attachment kit for DF-7120 and DF-7140
Capacity (sheets)
100 sheets, 52–300 g/m2, A6R–SRA3
Paper size
Bridge unit AK-7110 is required when using a finisher
Model
Banner Guide (10)
Type
Banner paper feeding guide
Capacity (sheets)
10 sheets
Dimensions (W x D x H)
(W x D x H): 250 x 374 x 152 mm
Paper size
320 x 1 220 mm
Model
BF-730
Type
Booklet and tri-folding unit for DF-7140
Dimensions (W x D x H)
(W x D x H) 650 × 410 × 320 mm
Paper size
Half folding: 60–256 g/m², A3, B4, A4R Booklet: max. 16 sheets (64 pages, 60–90 g/m³) Non-staple folding: max. 5 sheets (60–90 g/m²) Tri-folding: 60–120 g/m², A4R Multi tri-folding: 5 sheets (60–90g/m²), 3 sheets (91–120g/m²)
Model
DF-7100
Type
Internal Document finisher
Capacity (sheets)
500 sheets
Dimensions (W x D x H)
(W x D x H): 672 × 533 × 277 mmPaper size
52–300 g/m²; A6R – SRA3; Stapling up to 50 sheets at 3 positions A4 – A3
Model
DF-7120
Type
Document Finisher + AK-7100
Capacity (sheets)
1,000 sheets
Dimensions (W x D x H)
(W x D x H) 548 x 618.5 x 1050 mm
Paper size
Main tray: 1,000 sheets A4, 52 – 300 g/m², A6R – SRA3, 3 positions stapling up to 50 sheets A4 or 30 sheets SRA3 AK – 7100: 100 sheets; 52 – 300 g/m², A6R – SRA3 (Bridge unit AK-7100 is required for the use of DF-7120)
Model
DF-7140
Type
Document Finisher (AK-7110 required)
Capacity (sheets)
4,000 sheets
Paper size
Main tray: Max. 4,000 sheets A4 (3,000 sheets with attachment BF-730); max. 52 – 300 g/m²; max. A6R – SRA3 Sub tray: 200 sheets A4; 52 – 300 g/m²; A6R – SRA3 AK – 7100: 100 sheets; 52 – 300 g/m²; A6R – SRA3 Stapling up to 65 sheets A4 or 30 sheets A3 at 3 positions, B5 – SRA3 (Bridge unit AK-7110 is required for the use of DF-7140)
Model
DP-7140
Type
Document processor (reversing)
Capacity (sheets)
50 sheets
Dimensions (W x D x H)
(W x D x H) 588 × 502 × 133 mm
Paper size
45–160 g/m² (simplex), 50–120 g/m² (duplex), A5R–A3, Banner up to 1,900 mm
Model
DP-7150
Type
Document processor (reversing)
Capacity (sheets)
140 sheets
Dimensions (W x D x H)
(W x D x H) 593 × 532 × 146 mm
Paper size
35 – 160 g/m² (simplex), 50–120 g/m² (duplex), A6R – A3, Banner up to 1,900 mm
TK-8360C
Toner cyan for 12,000 pages. Average continuous toner yield in accordance with 5 % A4 coverage.
TK-8360K
Toner black for 25,000 pages. Average continuous toner yield in accordance with 5 % A4 coverage.
TK-8360M
Toner magenta for 12,000 pages. Average continuous toner yield in accordance with 5 % A4 coverage.
TK-8360Y
Toner yellow for 12,000 pages. Average continuous toner yield in accordance with 5 % A4 coverage.
WT-8500
Waste Toner Bottle: 40,000 sheets A4 (in accordance with 5% coverage, b/w : colour = 7:3)
Card Authentication Kit (B)
Support for various authentication keys available
DT-730(B)
Document tray
Fax System 12
Super G3 Fax, network fax
HD-15
320 GB HDD hard disc for easy document management
HD-16
1TB HDD hard disc for easy document management
IB-37
Wireless Network Interface (USB: 5GHz/2.4GHz)
IB-38
Wireless Network Interface (USB: 2.4GHz)
IB-50
Gigabit-Ethernet board 10BaseT/100BaseTX/1000BaseT
IB-51
Wireless LAN Interface (802.11b/g/n)
Internet Fax Kit
Type A
KPC-12
Paper clamp to protect paper for standard cassettes, PF-7150/PF-7120
KPC-13
Paper clamp to protect for PF-7140
KYOmulticode SD 3
Contains all the functionalities of PCL Barcode Flash plus Unicode font “Andale Mono World Type“ which allows the user to print Asian fonts (Japanese, Korean, current and traditional Chinese)
Keyboard Holder 10
For optional USB keyboard
NK-7120
Numeric keypad
PCL Barcode SD
Adds additional one- and two-dimensional barcodes to the KYOCERA device (as well as the resident and machine-readable fonts OCR-A, OCR-B)
Platen Cover
Type E
Scan extension Kit (A) AC
Scan to searchable PDF (embedded OCR) or to MS Office (docx, xlsx, pptx), HDD, SSD or SD-card is needed.
UG-33
ThinPrint support
UG-34
Emulation (IBM Proprinter/EPSON LQ-850/Diablo 630)
USB IC Card Reader + Card Authentication Kit (B)
Support for various authentication keys available
General type
Colour multifunctional for A3 format
Engine speed
Up to 25 pages A4 per minute Up to 12 pages A3 per minute Duplex print speed: 25 page per minute, A4 Duplex copy speed: 25 page per minute, A4
Warm-up time
Approx. 18 seconds or less
Power consumption
Printing: 450 W Copying: 450 W Ready mode: 40 W Sleep-mode: 0.5 W
General type
Colour multifunctional for A3 format
Engine speed
Up to 25 pages A4 per minute Up to 12 pages A3 per minute Duplex print speed: 25 page per minute, A4 Duplex copy speed: 25 page per minute, A4
Warm-up time
Approx. 18 seconds or less
Power consumption
Printing: 450 W Copying: 450 W Ready mode: 40 W Sleep-mode: 0.5 W
Processor
ARM A53 (Quad Core) 1.6GHz
Fonts
93 outline fonts (PCL), 136 fonts (KPDL 3), 8 fonts( Windows Vista), 1 Bitmap font 45 types of one-dimensional barcodes, 1 type of two-dimensional barcode (PDF417)
Features
Encrypted PDF Direct Print, IPP printing, e-mail printing, WSD print, secure printing via SSL, IPsec, SNMPv3, quick copy, proof and hold, private print, job storage and job management functionality, Super Resolution
Applicable OS
All current Windows operating systems, MAC OS X Version 10.9 or higher Unix, Linux as well as other operating systems on request
Max. original size
A3, Ledger
Continuous copy
1–9,999
Zoom range
25–400% in 1% steps
Preset magnification ratios
5 Enlargements/5 Enlargements
Image adjustments
Text + Photo, Photo, Text, Diagram/Map
Digital copy features
Scan-once-copy-many, electronic sort, 2in1, 4in1, image repeat, page numbering, cover mode, booklet copy, interrupt copy, form overlay, margin shift, auto cassette change, skip blank page, ID copy
Scan functionalities
Scan to e-mail, Scan to FTP, Scan to SMB, Scan to USB Host, Scan to box, Network TWAIN, WIA/WSD scan
Scan speed
200 ipm (300 dpi, A4, duplex, b/w, with DP-7160/7170) 200 ipm (300 dpi, A4, duplex. colour, with DP-7160/7170)
Scan resolution
600dpi x 600dpi , 400dpi x 400dpi , 200dpi x 400dpi, 300dpi x 300dpi , 200dpi x 200dpi , 200dpi x 100dpi 256 greyscales per colour
Max. scan size
A3, Ledger
File type
TIFF, PDF, PDF/A, JPEG, Open XPS, Encrypted PDF, High compression PDF, PDF/A-1a/b, PDF/A-2a/b/u, Searchable PDF (Option), MS Office file (Option)
Original recognition
Text, photo, text + photo, Light Text / Fine Line, optimised for OCR
Compatibility
ITU-T Super G3
Modem speed
Max. 33.6 kbps
Scanning speed
2.0 seconds or less
Transmission speed
Max. 3 seconds (JBIG)
Scanning density
normal: 200 x 100 dpi, fine: 200 x 200 dpi, superfine: 200 x 400 dpi, Ultrafine: 400 x 400 dpi, halftone: 256 greyscales
Max. original size
A3, Ledger, Banner: 1,600mm
Fax features
Network faxing, rotate transmission, rotate reception, encrypted transmission and reception, duplex fax reception, memory reception, mailbox, remote diagnostics, polling transmission and reception, broadcast, Optional Internet-fax, dual fax with second fax system 12
