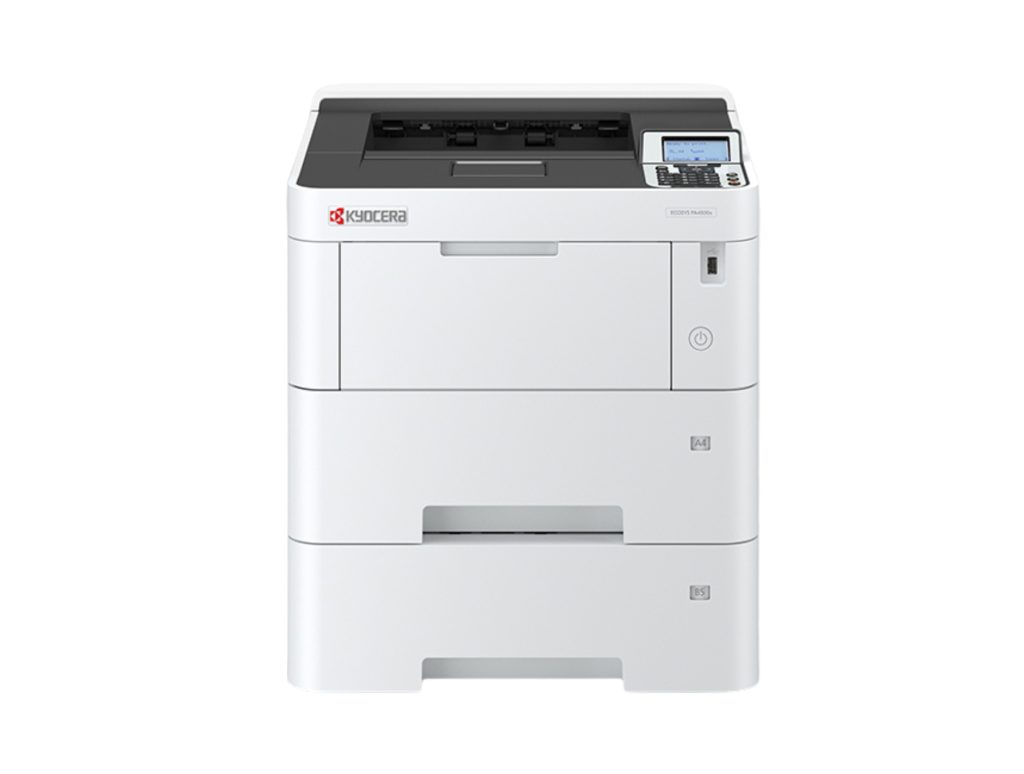

The ECOSYS PA4500x is a powerful printer embedded with high-level security features. The rapid speed of up to 45 pages per minute contributes to the enhanced productivity of smaller workgroups. Thanks to long-life components and low energy consumption, leaves a smaller environmental footprint.
Model:
PB-325
Type:
Printer base
Paper size:
For use with PF-315+
Model:
PF-3100
Type:
Bulk paper feeder and PB-325 Printer base
Capacity (sheets):
2,000 sheets
Dimensions (W x D x H):
(W x D x H): 352 x 345 x 376 mm
Paper size:
60–220 g/m² (not to be combined with PF-320)
Model:
PF-3110
Type:
Paper feeder
Capacity (sheets):
500 sheets
Dimensions (W x D x H):
(W x D x H): 380 x 410 x 121 mm
Paper size:
60 – 120g/m2, A4, A5, B5, Letter, Legal Custom (92 – 216 x 162 – 356 mm)
TK-3405
Microfine toner for 12,500 pages A4. Capacity of starter toner is 6,000 pages A4, Average continuous toner yield in accordance with ISO/IEC 19752
MK-3265 (contents)
Drum unit, Fuser unit, Transfer roller, Feed roller and Retard roller.
MK-3165 Life
Maintenance kit life is 300,000 pages
HD-17
64 GB for easy document management
HD-18
256 GB SSD hard disc for easy document management
HD-19
512 GB SSD hard disc for easy document management
IB-32B
Parallel IEEE1284 interface kit
IB-37
Wireless Network Interface (USB: 5GHz/2.4GHz)
IB-38
Wireless Network Interface (USB: 2.4GHz)
IB-50
Gigabit-Ethernet board 10BaseT/100BaseTX/1000BaseT
IB-51
Wireless LAN Interface (802.11b/g/n)
KYOCERA Life 3 years
Warranty extension 3 years on-site
KYOCERA Life 4 years
Warranty extension 4 years on-site
KYOCERA Life 5 years
Warranty extension 5 years on-site
KYOmulticode SD 3
Contains all the functionalities of PCL Barcode Flash plus Unicode font “Andale Mono World Type“ which allows the user to print Asian fonts (Japanese, Korean, current and traditional Chinese)
MM-20
1,024 MB RAM Expansion
MM-21
2,048 MB RAM Expansion
PCL Barcode SD
Adds additional one- and two-dimensional barcodes to the KYOCERA device (as well as the resident and machine-readable fonts OCR-A, OCR-B)
UG-33
ThinPrint support
UG-50
Trusted Platform Module (TPM)
USB IC Card Reader + Card Authentication Kit (B)
Support for various authentication keys available
General type
Monochrome printer for A4 format
Engine speed
Up to 45 pages A4 per minute. Duplex print speed: up to 22.5 page per minute, A4.
Warm-up time
Approx. 16 seconds or less from power on
Power consumption
Print – mode: 605.5 W, Sleep mode: 0.5 W, Ready – mode: 8.4 W
Warranty
1-year warranty as standard **KYOCERA guarantees the drum and developer for 3 years or 300,000 pages (whichever occurs sooner), provided each device is used and cleaned in accordance with the service instructions. Up to 5-year on-site warranty extensions available for product and options.
Input capacity
100-sheet multi-purpose tray: MP tray: 60 – 220g/m2, A4, A5, A6, B5, Letter, Legal, Custom (70 x 148 – 216 x 356 mm), Banner paper up to 915 mm 500-sheet universal paper cassette: : 60 – 120g/m2, A4, A5, B5, Letter, Legal, Custom (140 x 210 – 216 x 356 mm)
Max. input capacity with options
2,600 sheets
Duplex unit
Duplex functionality as standard: Double sided printing: A4, A5, B5, Letter, Legal, Custom (140 x 210 mm – 216 x 356 mm), 60 – 120g/m2
Max. output capacity
250-sheet-face-down with paper full sensor
Processor
ARM Cortex-A53 Dual core 1.4GHz
Fonts
93 outline fonts (PCL6/KPDL 3), 8 fonts (Windows), 1 Bitmap font, 45 types of one-dimensional barcodes, 1 type of two-dimensional barcode (PDF417)
Features
PDF Direct Print, IPP printing, e-mail printing, WSD print, secure printing via SSL, IPsec, SNMPv3, Encrypted PDF Direct Print
Applicable OS
All current Windows operating systems, Mac OS X Version 10.9 or higher, UNIX LINUX, as well as other operating systems on request
